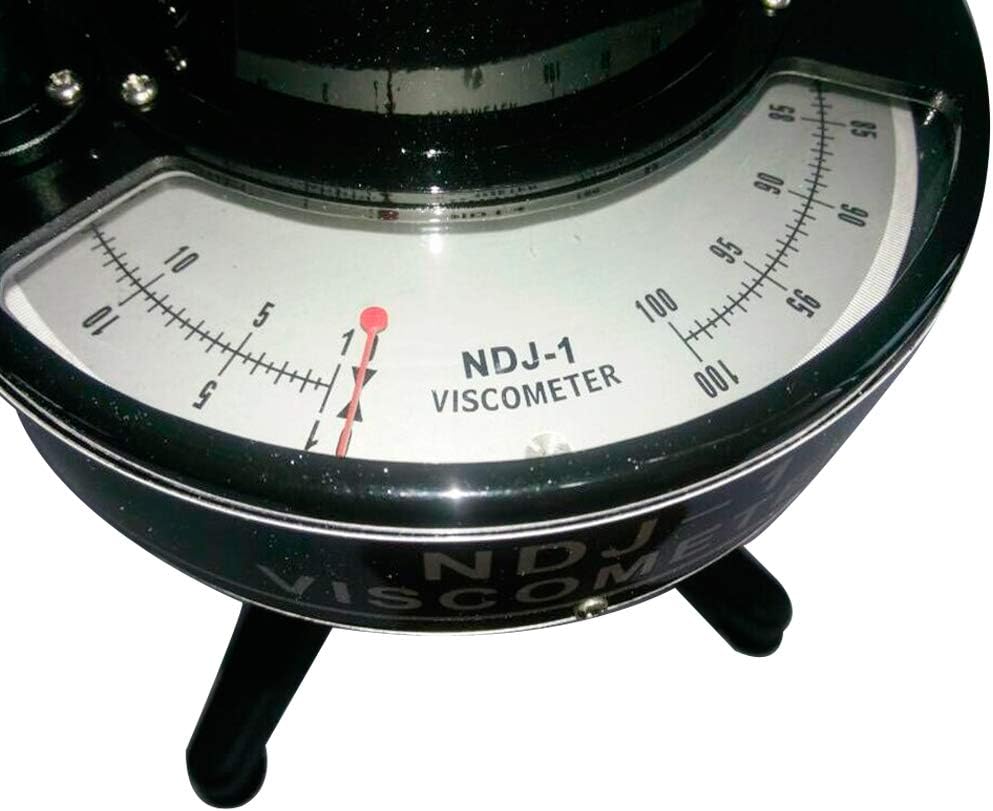

NDJ-1 Rotational Rotary Viscometer Viscosity Tester Meter Fluidimeter

Working principle:NDJ-type 1 rotating viscometer is applicable to various kinds of liquid and determination of the absolute semiliquids viscosity and include determination of grease, paint, food, medicine, cosmetic, glue, etc. Various kinds of fluid viscosity. Is the new product development, product quality control testing is used in the analysis of one of the most precise instrument.I company of production NDJ-type 1 rotating viscometer has the following features:1. The lifting system USES inclined rack/inclined gear way:Domestic other factory rotation viscometer by the straight rack/gear straight way, rack and gear at work, only a tooth contact, if easily adjusted upward; Will the downward slide, such as avoid the slippery, upward adjustment will be difficult. Face the rotation of the factory is inclined gear viscometer by way of inclined rack and inclined gear a job, with three tooth contact, overcome straight rack/straight gear shortcomings, move convenient, easy, and not since the slippery. (oblique rack/inclined gear in the way of the cost of processing requirements than straight rack/gear way much more difficult)Specification:Determining range1 ~ 1 x 105 mPaRotor specifications1, 2, 3, 4, 4 kinds of rotor (0 th rotor is option, measurable low viscosity to 0.1 mPa. S)Instrument speed6/12/30/60 turn/pointsMeasurement errorPlus or minus 5% (Newton liquid)Electricity source220 V ± 10 V; Frequency 50 HzNet weight5.5 kgShape dimension400 x 370 x 150 mm

• Rotor specifications 1, 2, 3, 4, 4 kinds of rotor (0 th rotor is option, measurable low viscosity to 0.1 mPa. S)
• Instrument speed 6/12/30/60 turn/points ★ Suitable to determine the absolute viscosity of the Newtonian liquids
• Electricity source 220 V ± 10 V; Frequency 50 Hz ★ This is model with Rotor Size: No11;2;3;4 Four Spindles
• NDJ-1 Viscometer Determining range 1 ~ 1 x 105 mPa ★ High measurement sensitivity, reliable results and beautiful model, convenience to be operated
• Measurement error Plus or minus 5% (Newton liquid) ★ Be used to determine the viscosity of various liquid such as greases, oil paints, plastic
